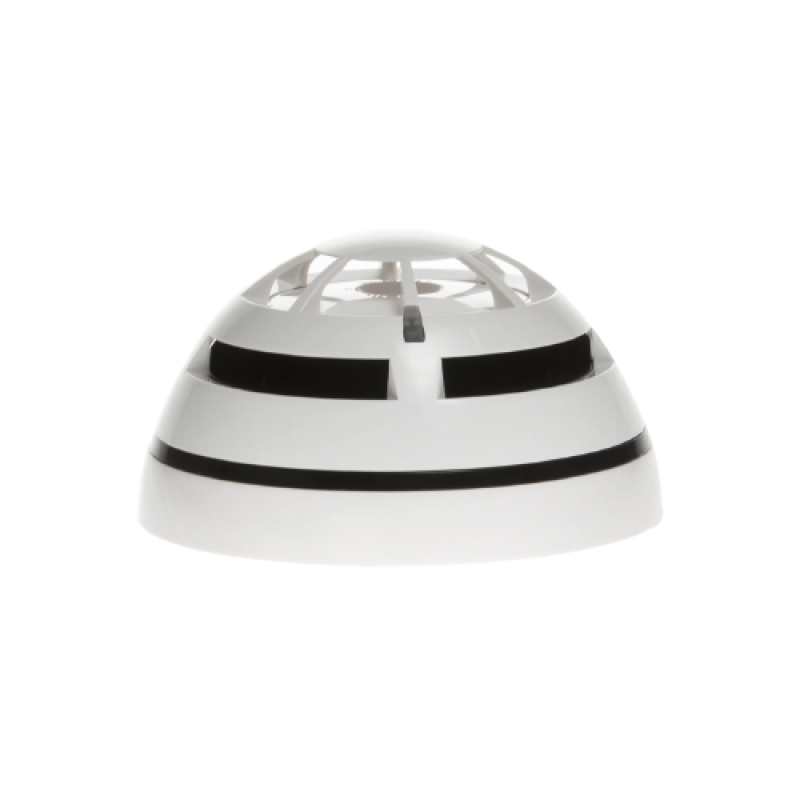

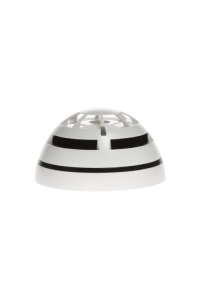

Inim A2000L - Smoke and heat detector without Loop short-circuit isolator

A2000L

Smoke and heat detector without Loop short-circuit isolator

• Dual Detection Capability: Combines optical smoke detection and heat sensing to enhance fire detection accuracy.​inim.biz

• Addressable Functionality: Communicates with compatible fire alarm control panels using the Argus fully digital communication protocol, allowing precise identification of the detector's location during an alarm. ​

• Design and Dimensions:

  • Height: 54 mm​

  • Diameter: 110 mm​

  • Weight: 130 g

• Power Requirements:

  • Voltage Range: 18 to 40 V DC​

  • Current Consumption: 70 µA in standby; 20 mA in alarm state

• Operating Environment:

  • Temperature Range: -30°C to +70°C​

  • Humidity: Up to 95% relative humidity (non-condensing)
